Introduction
Most homeowners shopping for custom stainless steel cabinets don't realize how much the specification details matter until after installation. The wrong steel grade corrodes near a coastal window. The wrong gauge dents under daily use. The wrong finish shows every fingerprint in a high-traffic kitchen. Getting those details right from the start is the difference between cabinets that last 30 years and ones that disappoint within five.
Stainless steel has moved well beyond commercial kitchens into residential spaces, and "custom" raises the stakes considerably — every specification decision is permanent once fabrication begins.
High-income households are moving forward with major renovations by tapping cash savings rather than financing, even as the broader $173 billion U.S. kitchen and bath market faces a 3% dip in 2024. For buyers willing to invest upfront, that calculus makes sense — stainless steel cabinets done right require almost no replacement budget over their lifespan. This guide covers how to evaluate steel grades, gauge thickness, finish options, and fabrication quality so you can make a specification decision you won't regret.
TL;DR
- Custom stainless steel cabinets deliver superior durability, hygiene, and design flexibility versus wood or laminate
- Steel grade (304 vs. 316), gauge thickness (16 vs. 18), and finish type are the most critical selection factors
- Custom fabrication is necessary for non-standard layouts or professional-grade performance
- Expect higher upfront costs but lower maintenance and a longer lifespan
- Choose a fabricator who provides material certifications and load-tested hardware
What Are Custom Stainless Steel Kitchen Cabinets?
Custom stainless steel kitchen cabinets are built to your kitchen's exact dimensions, layout, and design preferences—not pulled from a stock catalog. The two grades most relevant to kitchens are 304 and 316, both from the austenitic family (the most corrosion-resistant category of stainless steel), each suited to different environments and budgets.
Core Components of a Custom Stainless Steel Cabinet
Understanding what you're buying starts with the three main components:
- Cabinet body/carcass — The structural frame, either TIG/MIG welded or mechanically fastened. Welded joints handle daily load stress and humidity without loosening; screws and rivets can work loose under heavy use over time.
- Door and drawer fronts — The visible faces that define the look. Finish (brushed, mirror, powder-coated), panel style (flat, reeded, textured), and gauge thickness all matter here. Thicker gauges resist denting and feel more solid on open and close.
- Interior fittings — Where budget cabinets cut corners first. Look for full-extension drawer slides rated to 100 lbs (not the standard 75 lbs) and soft-close hinges that won't need constant adjustment.
Benefits of Custom Stainless Steel Kitchen Cabinets
Key benefits include:
- Resists moisture, heat, pests, and mold without degradation
- Non-porous surface that doesn't harbor bacteria—meets FDA Food Code requirements for food-contact surfaces
- No warping, cracking, swelling, or need for repainting over decades
- Fully recyclable at end of life—North American stainless steel contains 75–85% recycled content
What to Consider When Choosing Custom Stainless Steel Kitchen Cabinets
"Custom" doesn't automatically mean "correct." Choosing the wrong grade, gauge, or fabrication method results in a cabinet that looks right initially but fails prematurely or costs more to maintain than expected. The factors below translate your kitchen use habits, layout needs, and budget into precise technical requirements before you engage a fabricator.
Steel Grade
304-Grade (18/8 Stainless Steel):Contains 18–20% chromium and 8–10.5% nickel, offering strong corrosion resistance for typical indoor kitchen environments. This is the standard recommendation for most residential kitchens.
316-Grade (Marine-Grade Stainless Steel):Contains 16–18% chromium, 10–14% nickel, and 2–3% molybdenum. The molybdenum addition improves resistance to chloride-induced pitting, making 316 the upgrade choice for coastal homes or high-humidity environments where salt air is present.
201-Grade (Budget Alternative):Contains only 3.5–5.5% nickel and significantly more manganese. This grade fails rapidly in humid or salty environments and is sometimes used by budget manufacturers.

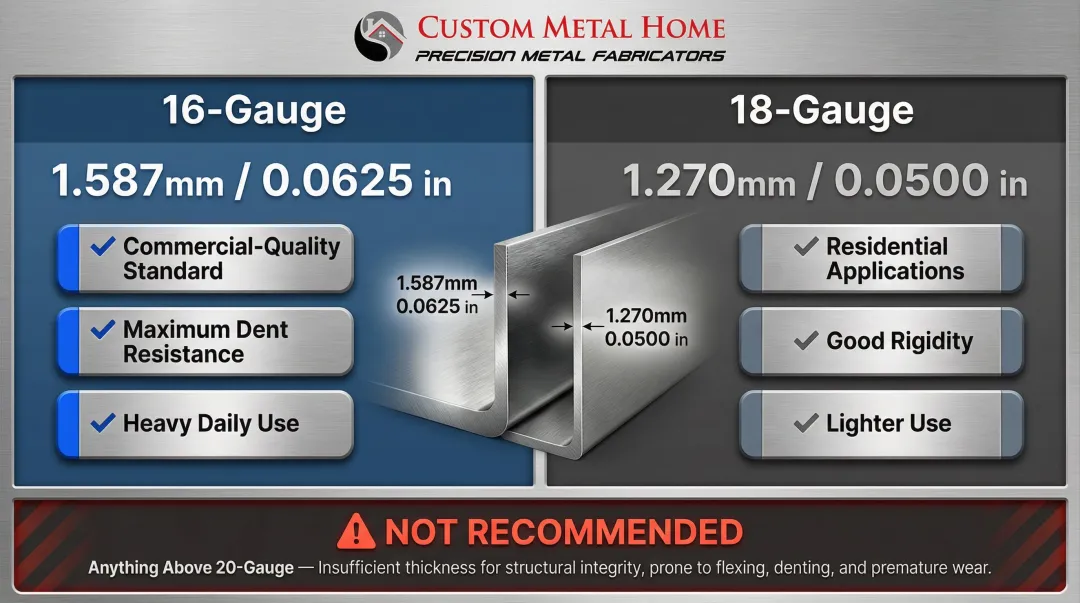

Gauge and Thickness
Gauge refers to steel sheet thickness — lower gauge number means thicker steel, and thicker steel resists denting, improves door rigidity, and feels more solid. Gauge thicknesses are not universally standardized and can vary between producers, so specify exact decimal thickness when ordering:
- 16-Gauge = 1.587 mm (0.0625 inches) — commercial-quality standard
- 18-Gauge = 1.270 mm (0.0500 inches) — common for residential applications
18-gauge suits lighter residential use; 16-gauge is standard for commercial kitchens that endure intensive daily wear. Anything above 20-gauge dents under normal use and isn't worth the cost savings.
Finish and Surface Treatment
Finish affects both aesthetics and daily practicality:
- Brushed/Satin — Most popular; hides fingerprints and scratches; warm industrial look
- Mirror-Polished — High-gloss; shows every fingerprint; dramatic in large spaces
- Powder-Coated — Adds solid color (matte black, navy, white); reduces metallic feel
- PVD-Coated — Premium molecular bonding process; most durable finish available
See the dedicated finish section below for full detail on choosing the right surface treatment.
Construction and Hardware Quality
Cabinet Construction:Fully welded construction (TIG or MIG welding) handles daily load stress and humidity fluctuations without joints shifting. Mechanically assembled cabinets — screws and rivets — loosen progressively, particularly in humid kitchens.
Hardware Quality:Drawer slides and hinges are the most failure-prone components. Look for:
- Full-extension, soft-close drawer slides rated for 100+ lbs
- Concealed European-style hinges (not exposed hinges)
- Brand-name hardware systems (Blum, Grass, Hettich)
Budget cabinets cut corners here — cheap slides fail within 5 years, requiring costly replacement.
Layout Customization and Storage Options
A truly custom cabinet should be designed around your workflow:
- Dimensions fitted to ceiling height and wall width
- Storage configurations matched to cooking habits (deep drawers for pots, pull-out pantry units, built-in knife blocks)
- Seamless under-cabinet sink integration
- Flush-mounted appliance panels
- Ventilated base cabinets for under-sink moisture management
Custom stainless steel enables integrations impossible with standard wood cabinets, particularly around water and heat sources.
Budget and Long-Term Value
Those integration advantages come with a higher upfront price — custom stainless steel cabinets run $500–$1,200+ per linear foot, compared to semi-custom wood at $100–$650 per linear foot. However, frame this in terms of total cost of ownership: stainless steel cabinets require near-zero maintenance and last 50+ years, while wood cabinets often need replacement within 10–15 years.

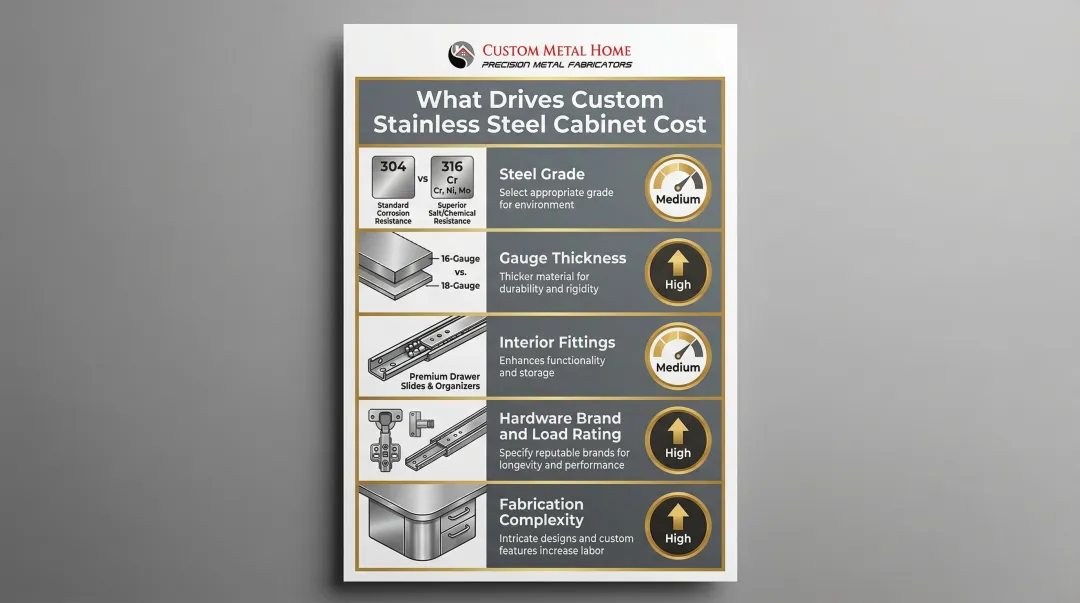

Key cost variables:
- Steel grade chosen (304 vs. 316)
- Gauge thickness (16 vs. 18)
- Number and type of interior fittings
- Hardware brand and load rating
- Fabrication complexity (curved elements, integrated appliances)
Knowing where each dollar goes lets you make targeted trade-offs — spending up on grade and hardware while simplifying interior fittings, for example — without compromising the cabinet's long-term durability.
Finish and Design Options for Stainless Steel Cabinets
Four Main Finish Categories
1. Brushed/Satin Finish
Textured, non-directional grain that disperses light and minor oils. Significantly better at concealing fingerprints, smudges, and light scratches compared to polished finishes. The most popular choice for residential kitchens — warm industrial look with minimal upkeep.
2. Mirror-Polished Finish
High-gloss reflective surface that shows every fingerprint and minor scratch. Requires frequent cleaning. Dramatic visual impact in large, well-lit spaces, but impractical for high-traffic kitchens.
3. Powder-Coated Finish
Adds solid color options (matte black, navy, white) while dialing back the metallic industrial feel. Durable, though less so than PVD coating. A good fit for homeowners who want color without committing to painted wood.
4. PVD-Coated Finish
Physical Vapor Deposition bonds color at the molecular level, producing a fully dense, pore-free coating. The most durable finish available — outperforms powder coatings in both longevity and corrosion resistance.
Design Pairings
Stainless steel pairs well with:
- Warm wood accents (butcher block countertops, open shelving)
- Natural stone countertops (marble, granite, soapstone)
- White or matte black cabinetry in two-tone combinations
- Bold backsplash colors (deep blue, forest green, terracotta)
Lighting Considerations
Brushed steel diffuses light more evenly, reducing glare. Mirror finishes amplify harsh shadows or glare from overhead lighting. Consider your kitchen's primary light source—natural daylight vs. recessed LED vs. pendant fixtures—when making final finish decisions.
Custom vs. Prefabricated Stainless Steel Cabinets
The first decision you'll face is whether to buy prefabricated units off the shelf or commission a custom fabricator. Each has a clear use case.
| Prefabricated (Stock/Semi-Custom) | Custom-Fabricated | |
|---|---|---|
| Dimensions | Fixed sizes, limited configurations | Built to exact specifications |
| Cost | Lower upfront | Higher, but reflects precision build |
| Best for | Standard layouts, typical ceiling heights | Non-standard spaces, integrated designs, high-performance kitchens |
When Custom Fabrication Is Clearly Worth the Premium
- Irregular room dimensions or ceiling height variations
- Island or peninsula integration requiring specific dimensions
- Specific appliance cutouts not available in stock sizes
- Seamless all-steel aesthetic that prefab units cannot replicate
- Professional-grade performance requirements (heavy cookware, commercial appliances)
Once you've confirmed custom is the right path, choosing the right fabricator is where most buyers make or lose their investment.
Quality Indicators When Evaluating a Fabricator
- Provides steel mill certifications or grade documentation
- Uses TIG or MIG welding (not spot welding)
- Load-tests drawer systems before installation
- Provides clear lead times with project milestones
- Offers on-site measuring and CAD drawings
How We Can Help
We're a custom metal fabricator that builds stainless steel kitchen cabinets directly for homeowners, contractors, and designers. With a 4.8-star rating across 40 reviews, we work with you one-on-one — no big-box middlemen, no pre-set catalog options.
Our Process:
- Specify the right steel grade, gauge, and finish for your kitchen's demands
- Fabricate every cabinet to your exact measurements — no standard SKUs
- Provide on-site measuring and detailed CAD drawings before production starts
- Collaborate directly with your designer or contractor throughout the process
Get a Custom Quote:Call +1 888-501-3147 Monday–Friday, 7AM–4PM to discuss your project. We'll walk through your layout, cooking habits, and budget to recommend the right specifications before fabrication begins.
Conclusion
Choosing custom stainless steel kitchen cabinets is a decision with long-term consequences. Getting the grade, gauge, finish, and fabrication quality right from the start determines how your kitchen performs a decade from now. The goal isn't the most expensive or visually dramatic option—it's the configuration that aligns with your actual kitchen dimensions, cooking habits, and maintenance preferences.
Stainless steel has proven itself in professional and residential kitchens for good reason—it handles daily use without demanding much in return. With the right fabrication partner, the decisions covered in this guide translate directly into a kitchen built around how you actually cook and live.
Frequently Asked Questions
What is the best grade of stainless steel for kitchen cabinets?
304-grade stainless steel is the standard recommendation for most residential kitchens due to its excellent corrosion resistance and durability. 316-grade is preferred for coastal or high-humidity environments due to its added molybdenum content, which provides superior resistance to salt-air corrosion.
What cabinet colors and finishes pair best with stainless steel kitchen cabinets?
Brushed or satin stainless finishes pair well with warm wood accents, matte stone countertops, and neutral palettes. Powder-coated finishes in matte black or white allow for two-tone combinations that soften the industrial look while maintaining durability.
How long do custom stainless steel kitchen cabinets last?
With proper grade selection and fabrication quality, stainless steel kitchen cabinets last 25–50 years or more. That far exceeds wood or laminate alternatives, which typically need replacement within 10–15 years.
Are custom stainless steel kitchen cabinets more expensive than wood cabinets?
Yes, upfront costs are higher: expect $500–$1,200+ per linear foot versus $100–$650 for semi-custom wood. Total cost of ownership is competitive or better, though, given near-zero maintenance, no repainting, no warping repairs, and no pest damage over the cabinet's full lifespan.
Do stainless steel kitchen cabinets show fingerprints and scratches easily?
Mirror-polished finishes show fingerprints and fine scratches prominently. Brushed or satin finishes are significantly more forgiving in daily use, naturally hiding oils and minor surface marks. Many fabricators also offer anti-fingerprint coatings for additional protection.
Can stainless steel kitchen cabinets be fully customized for any kitchen size or layout?
Yes. Custom fabrication means cabinets are built to exact measurements regardless of ceiling height, wall angle, or appliance placement. This makes stainless steel one of the most layout-flexible materials available for kitchen cabinetry, particularly for non-standard spaces.
